EN
V-150
| V150 SPECIFICATION | ||
| Eccentric Moment | Kgm | 3.8 |
| Max pressure | bar | 320 |
| Max. Centrifugal force | Kn | 328 |
| Frequency | Rpm | 2800 |
| Max oil flow | L/min | 90 |
| Weight (vibator+clamp) | Kg | 1100+300 |
| L*W*H | mm | 1046*606*1884 |
| Vice arm (model/size/weight） | mm/kgs | A150/2000*620*1100/560 |
| Excavator Weight | T | 10-15 |
- Application
- Introduction
- Features
- Recommended Products
 |
 |
 |
|

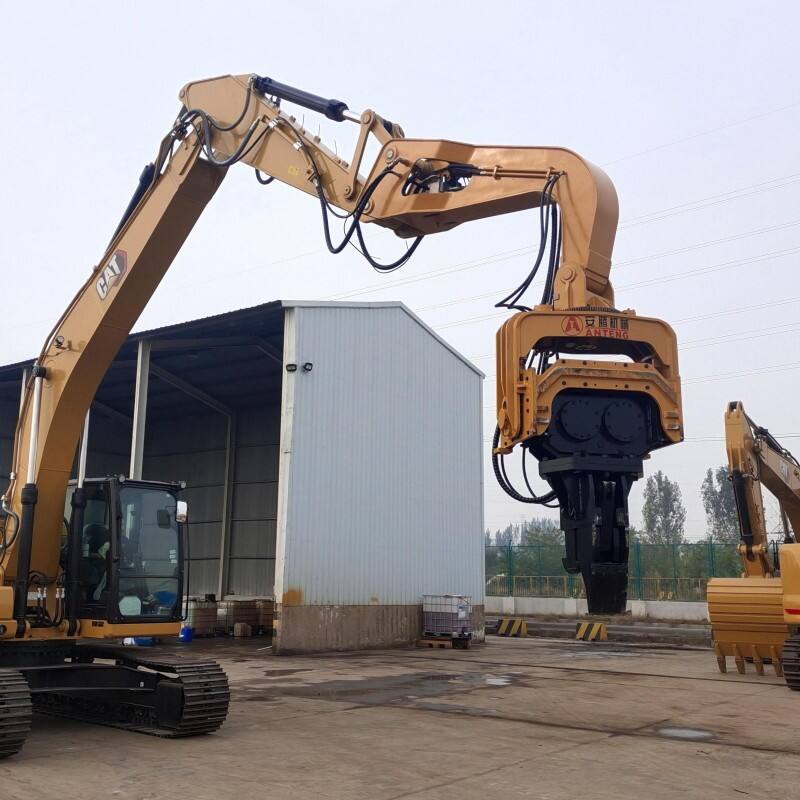

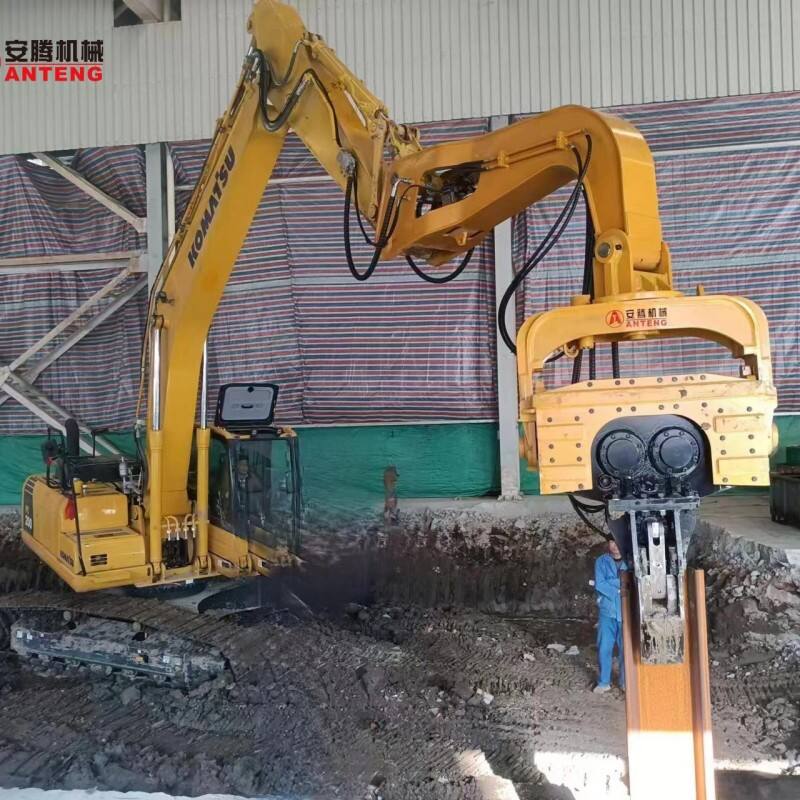

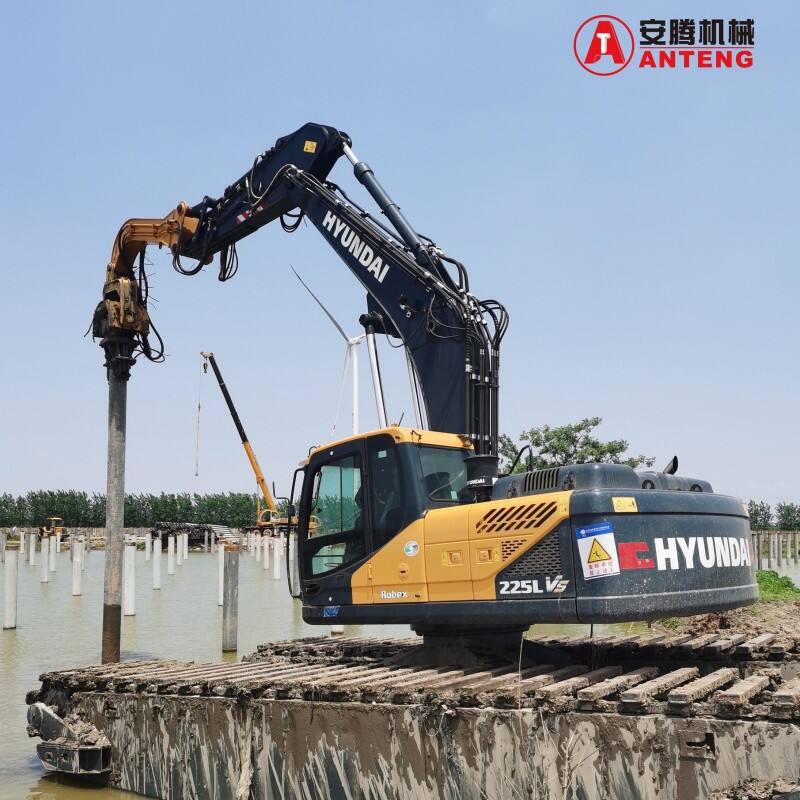

Introduction: Anteng V series excavator mounted hydraulic vibratory hammer can be applied for a wide range of working environment because of its small size and simple operation procedure, such as drainage maintenance, river-bank maintenance and marshland working wherever onshore and offshore piling job. Anteng has developed a series of excavator vibratory hammer from V150 to V1000, totally 12 model, built and designed for excavators weighting from 10 tons to 75 tons, and the clamp can be customized according to the pile size. meet the different requirements of various types of customers. |
 |
 |
Qualified eccentric block and traceability Our eccentric blocks of major model hammers have high quality, So our vibratory hammers drive piles more efficiently.And have batch number on it,can trace. |
 |
German FAG high speed bearing We adopts German FAG bearings, which have longer service life than ordinary bearing.This is key components to keep hammer working time. |
 |
Parker hydraulic motor Our all hydraulic motors are from world top brand-Parker, which service life and performance stability are much better. |
 |
International brand control valve Durable, with very low failure rate, it ensures precise control functions and stable working conditions. |
 |
Integral forged clamp One-piece processing, with solid, reliable and durable material. |
