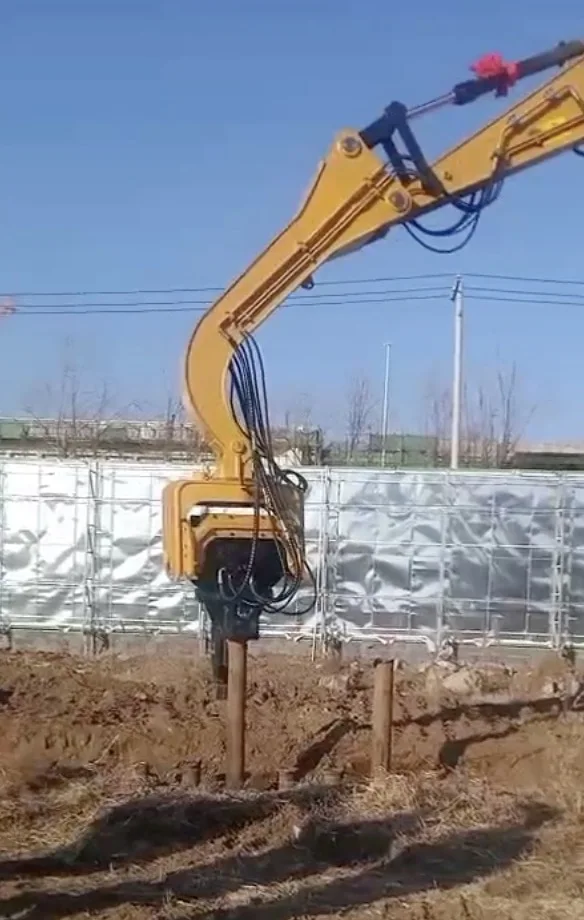

ANTENG pile drivers are excavator-mounted, high frequency, vibratory-type pile drivers - for handling, pitching, driving and extracting different type of piles in a wide range of site and soil conditions.
FEATURES:
1. More environmentally friendly, more comfortable operation experience
2. Circulating cooling, no high temperature troubles
3. Full hydraulic flexible control, simple operation, 360° rotation, 180° tilt , pick up pile easily
4. Available for a wide range of piles including sheet piles, H-piles, tubular steel piles, timber piles etc.
5. Precise design ,reliable performance, core components are imported from famous brands.
Eccentric Moment |
Kgm |
4.8 |
Frequency |
Rpm |
2800 |
Centrifugal force |
Kn |
380 |
Hydraulic system operation pressure |
bar |
280 |
Hydraulic system oil flow |
lpm |
164 |
Weight (with clamp and vice arm) |
kg |
2100+680 |
Suitable excavator weight |
Ton |
20-25 |

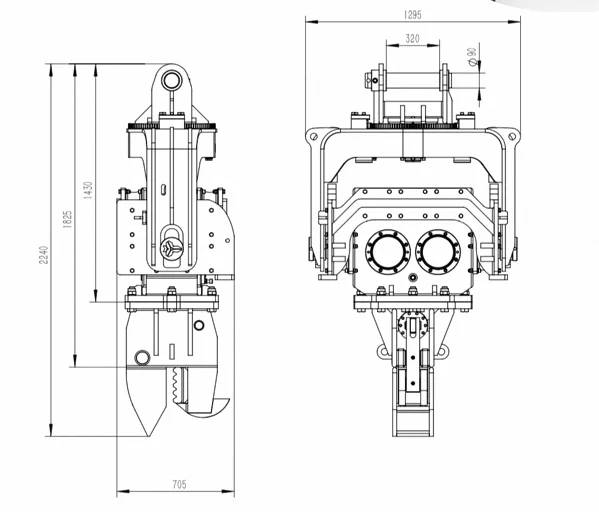

Size (measure with standard clamp) |
mm |
1300*705*2420 |
Vice arm model |
A200 |
|
Standred Max. Applicable sheet pile length |
m |
6 |
Max. Applicable sheet pile length ( move down excavator boom cylinder) |
m |
8 |

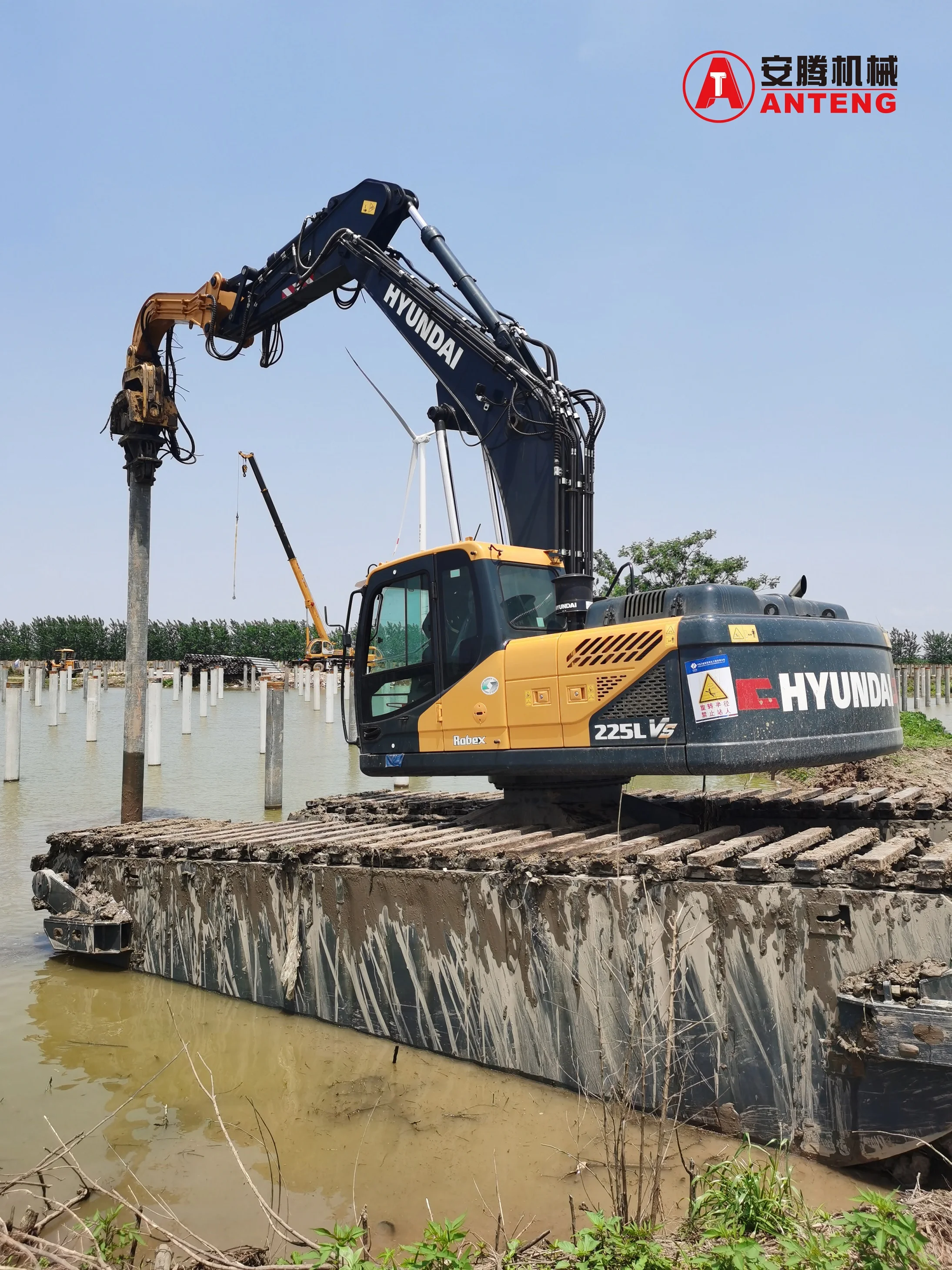

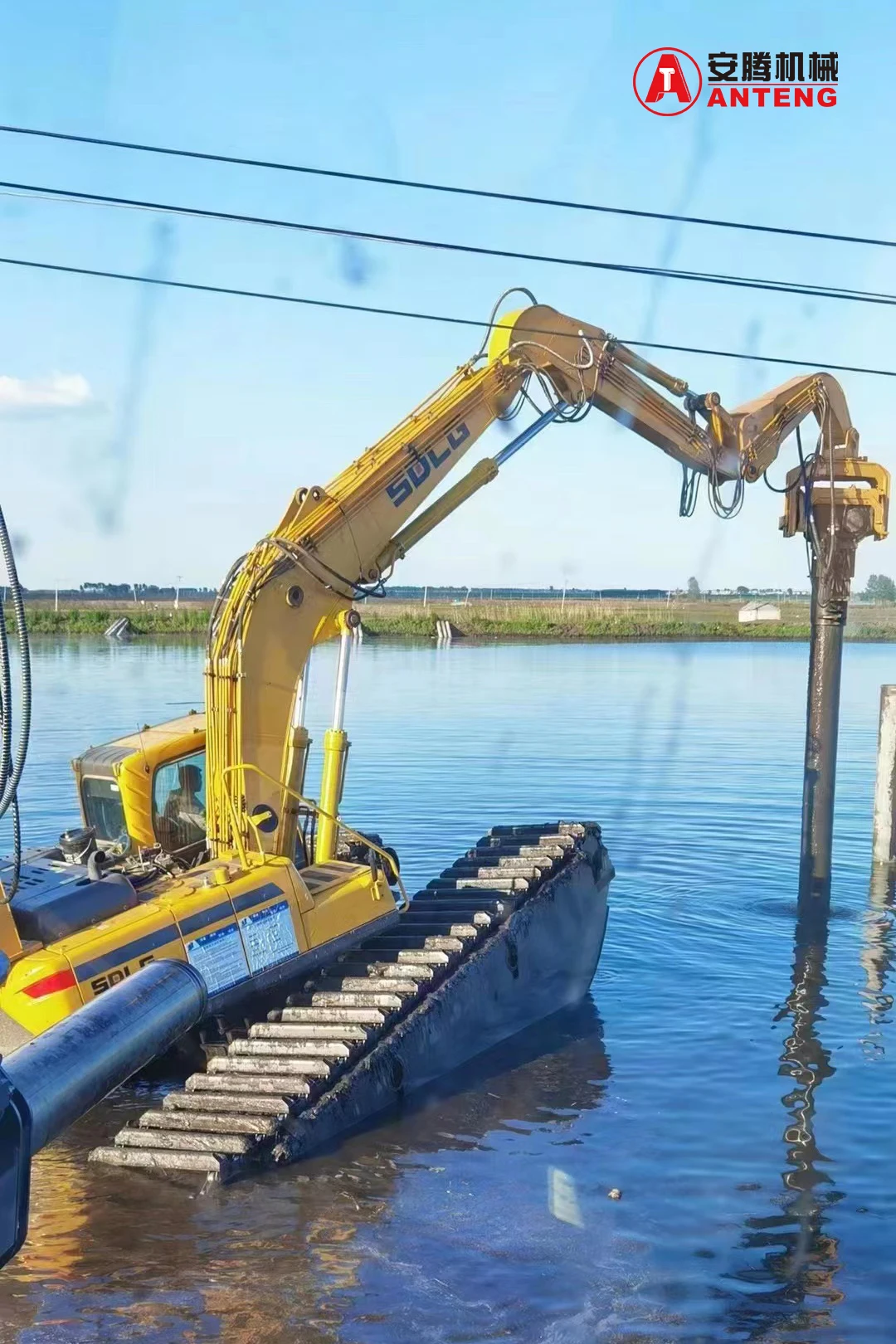

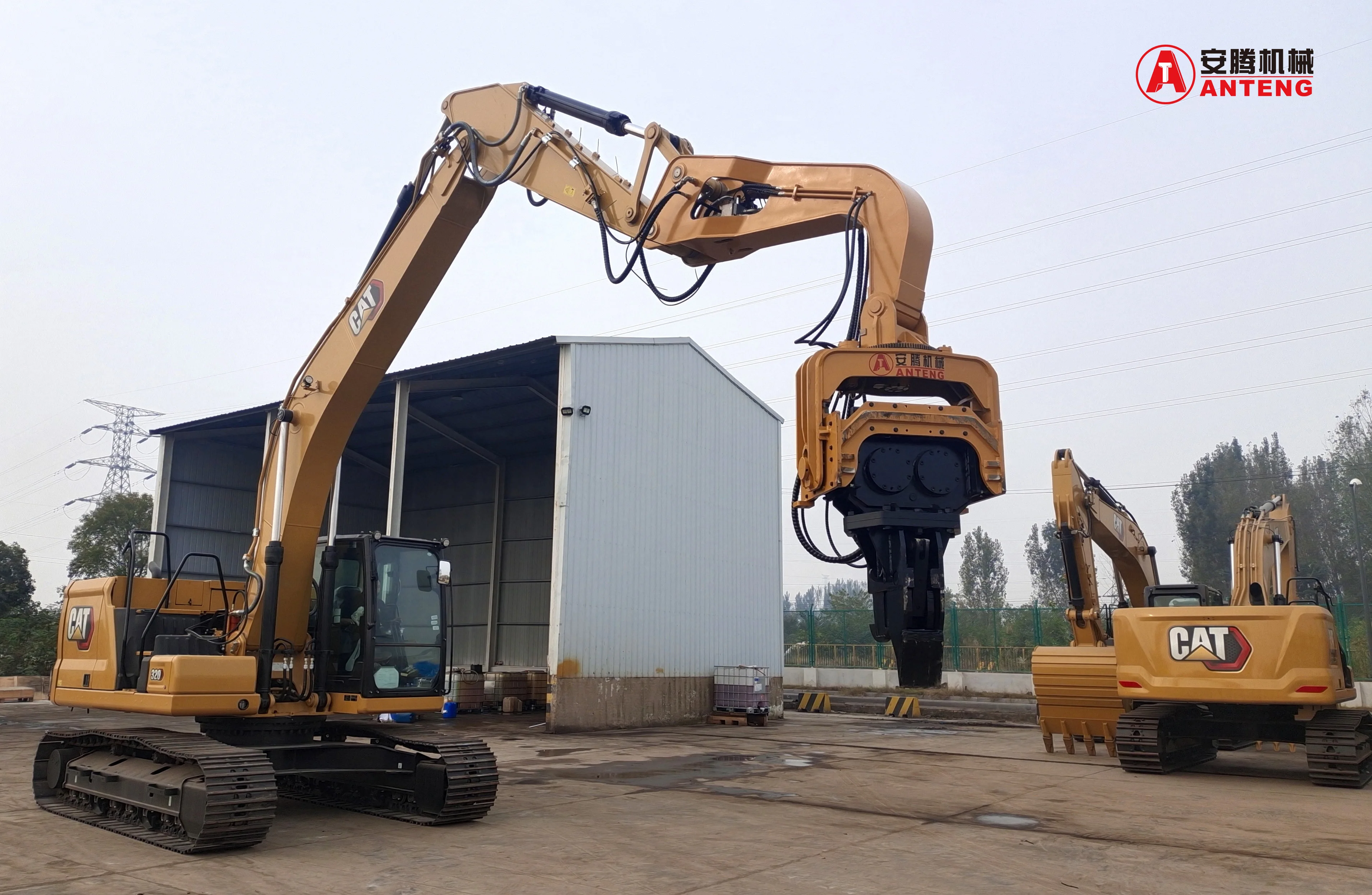

V250 Application：
* V250 Designed to match the capabilities of middle excavators and to combine a robust structure with excellent pile handling characteristics.
* Fitted with clamps capable of driving a wide range of piles including sheet piles, H-piles, tubular steel piles and other pile sections.
