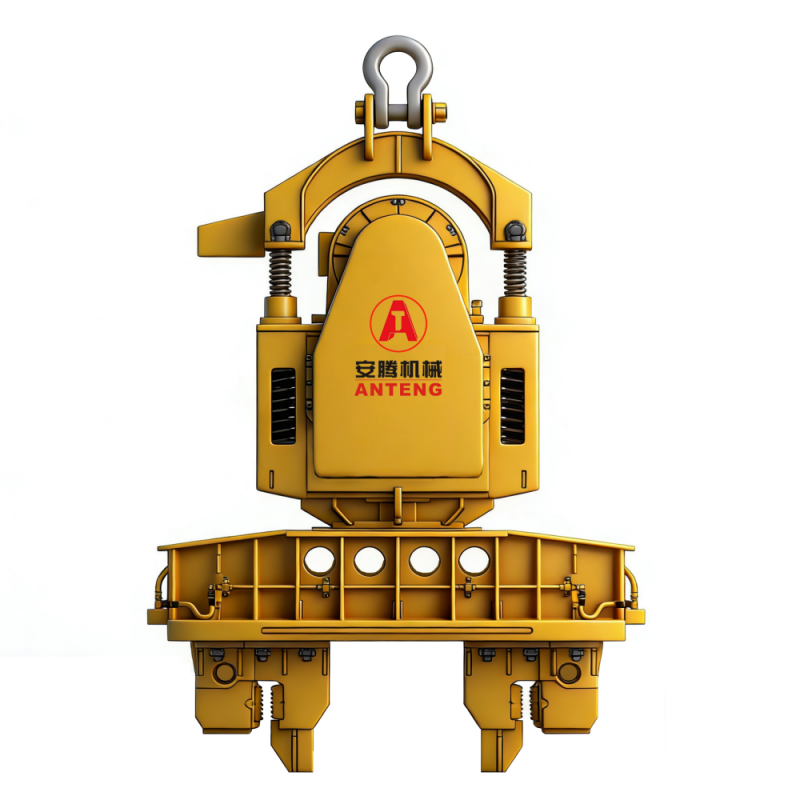

DZ 150
| DZ150 SPECIFICATION | ||
| Motor Power | Kw | 150 |
| Frequency | Rpm | 940 |
| Eccentric Moment | nm | 1000 |
| Centrifugal Force | Kn | 1000 |
| Amplitude | mm | 12.5 |
| Max. extraction force | Kn | 400 |
| Size(HxLxW) | mm | 3300*1700*1500 |
| Weight(W/O clamp) | Kgs | 9535 |
| Wire cable | mm² | 95 |
| Single clamp | Kgs | 1750 |
| Double clamp( standard scope) | mm |
600-2500
|
- Application
- Introduction
- Features
- Recommended Products
 |
 |
 |
Introduction:
|
The electric vibro hammer is a high-efficiency foundation construction tool, designed to drive various types of piles (such as wooden, steel, and concrete piles) into the ground with electric power-driven vibration force. Mounted on a crane or pile driver frame, it features precise pile positioning, adjustable driving energy, and low noise and vibration compared to traditional diesel hammers. Ideal for suburban construction, port engineering, and foundation projects, it ensures stable and rapid pile installation while meeting environmental and construction safety standards. |
Features：
|
1、High acceleration of vibration, high vibration frequency, strong capability in penetrating the ground and driving piles into the ground. |
|
2、During pile driving, it can enhance the efficiency of driving piles as the spring stores larger energy; during pile extraction, it can protect the frame due to its better damping effect. |
|
3、Adapt to multiple soil types and conditions, valuable tools for different foundation piling projects. |
|
4、Equipped with three-phase six-pole vibration resistant motors which are characterized by large starting torque, strong overload capacity, the high insulation grade and the long continuous operation time. |
|
5、Hammers of different models can adopt multiple motor starting methods such as the star-delta reduced voltage starting method, the autotransformer reduced-voltage starting method and the frequency converter starting method |
