Strong Centrifugal Force Crane Suspended Hydraulic pile Hammer AT230

Strong Centrifugal Force Crane Suspended Hydraulic pile Hammer AT230

The AT230 Crane Suspended Hydraulic Pile Hammer delivers exceptional performance through its powerful centrifugal force mechanism, making it ideal for demanding pile driving applications. This robust hammer combines reliable hydraulic technology with precise control to achieve optimal driving efficiency. Designed for crane suspension, it offers superior stability and maneuverability during operation. The hammer's strong centrifugal force ensures consistent energy transfer, resulting in effective penetration even in challenging soil conditions. Built with durable components and advanced engineering, the AT230 maximizes productivity while minimizing maintenance requirements. Perfect for construction projects requiring deep foundation work, bridge construction, and marine applications, this hydraulic pile hammer provides the perfect balance of power, reliability, and operational efficiency. Its user-friendly design allows for quick setup and seamless integration with existing crane systems.

Download catalogue:

product strong centrifugal force crane suspended hydraulic pile hammer at230-0

Application
Recommended Products

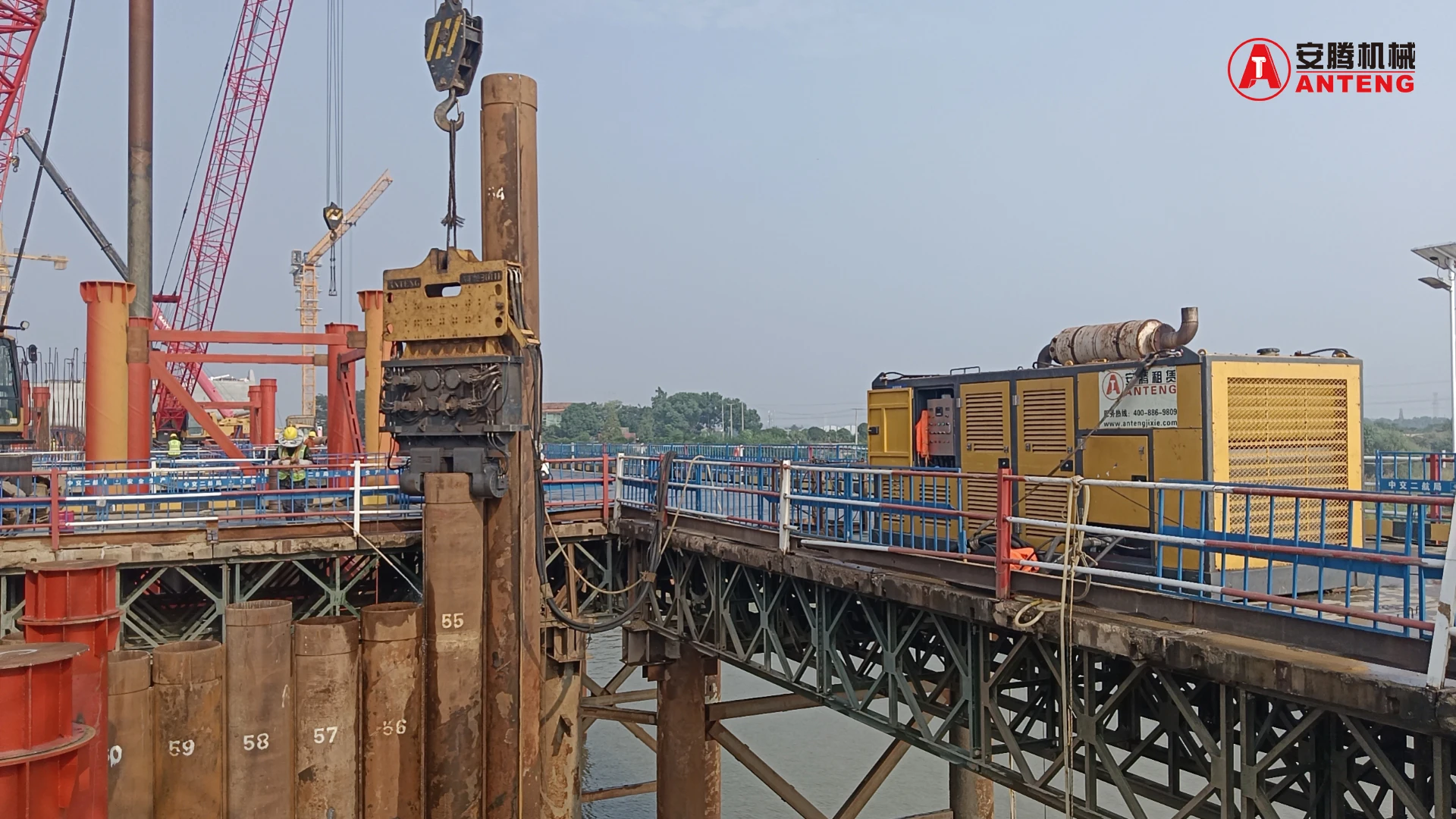

Strong Centrifugal Force Crane Suspended Hydraulic pile Hammer AT230 details

ANTENG hydraulic vibratory hammers are crane suspended type, normal and high frequency for driving and extracting different types of piles in a wide range of job sites and soil conditions.

ANTENG hydraulic vibratory hammer range contains 19 models currently, eccentric moments varies from 28kgm to 250kgm, and centrifugal force varies from 1000KN to 5400KN. Other sized vibratory hammers are also available on request. The hammer is equipped with power pack adopting well-known brands of spare parts, such as Cummins & Weichai engine, Rexroth pump, FAG bearing, and so on, for ensuring high quality and stable performance.

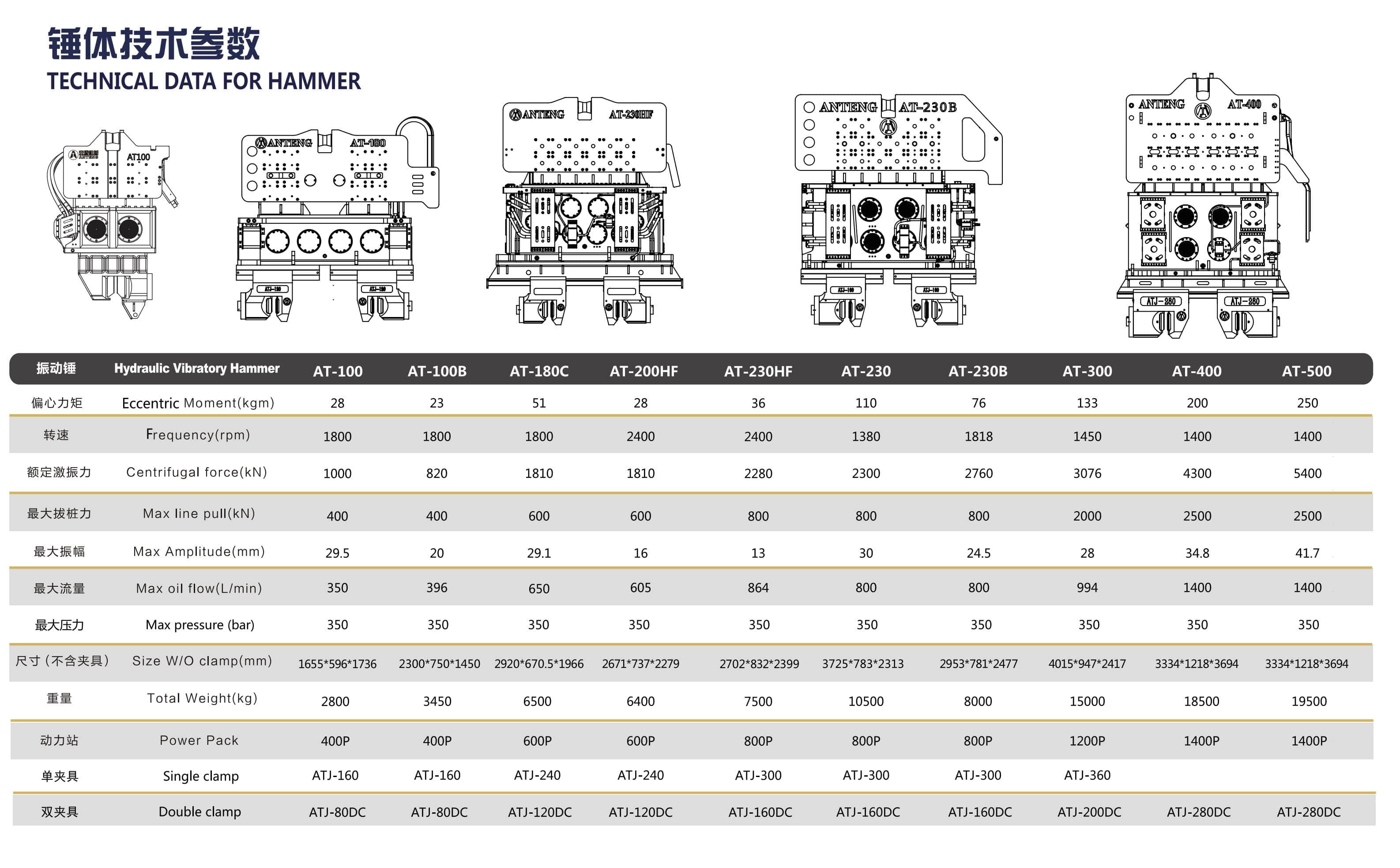

2025 安腾液压锤 Hydaulic Vibro Hammer (2)_1_01.jpg

2025 安腾液压锤 Hydaulic Vibro Hammer (2)_2_01.jpg

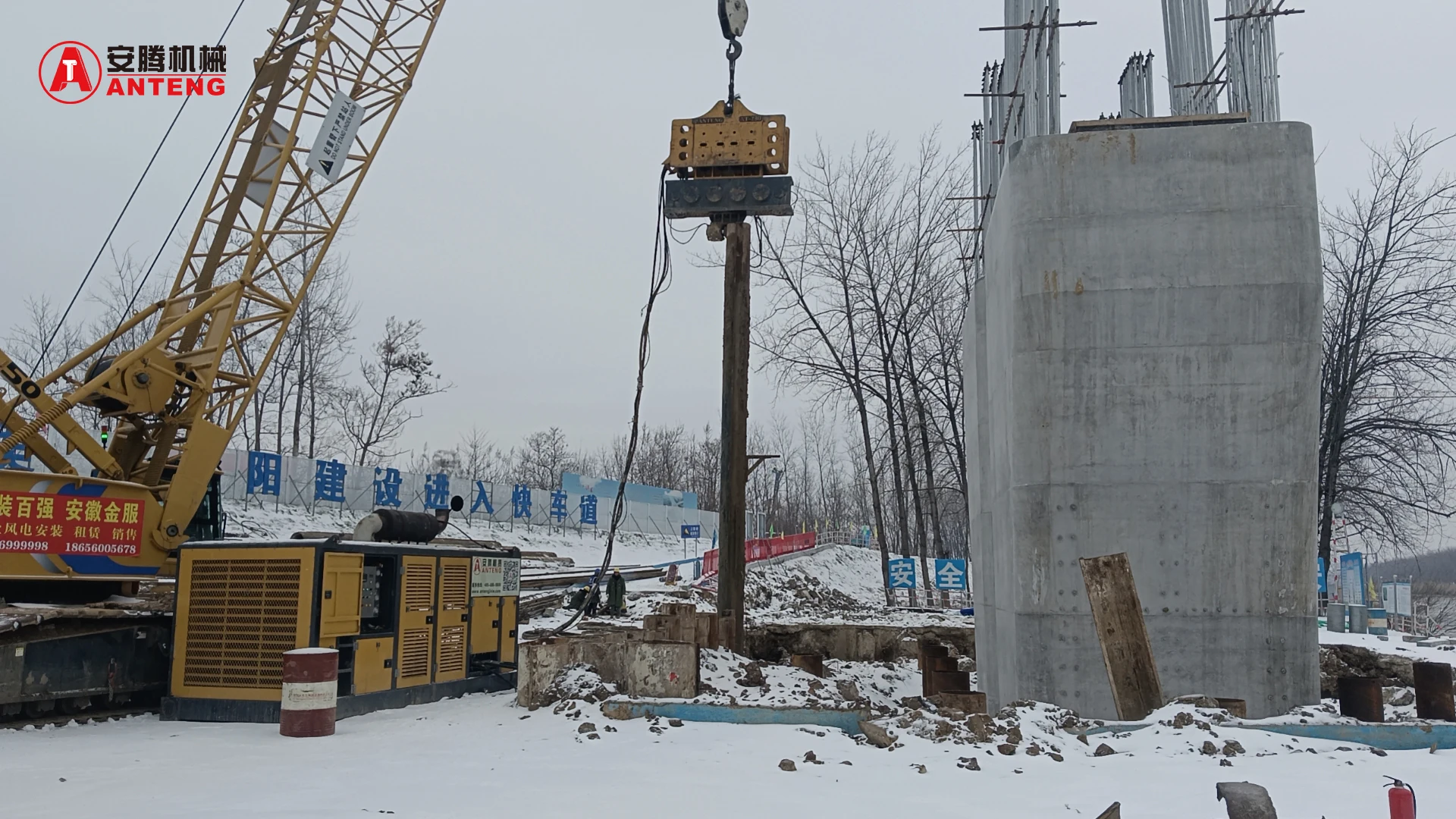

Strong Centrifugal Force Crane Suspended Hydraulic pile Hammer AT230 manufacture

FEATURES:

1. Covering all pile types, like steel tube, sheet piles.

2. Suitable for offshore operations, large bridges, docks, offshore wind power, etc.

3. Safe and effective with mature technology, world famous parts ensuring high quality.

4. Strong centrifugal force and pile pulling force.

SPECIFICATIONS	AT230
Eccentric moment (kgm)	110
Frequency (rpm)	1380
Max. centrifugal force (kN)	2300
Max. line-pull (kN)	800
Max. amplitude (mm)	35
Max. oil flow (L/min)	830
Max pressure（bar）	350
Size W/O clamp (mm)	27537812417
Total weight W/O clamp & hoses (kg)	10500
Power pack	800P
Power (KW/HP)	670/911
