EN

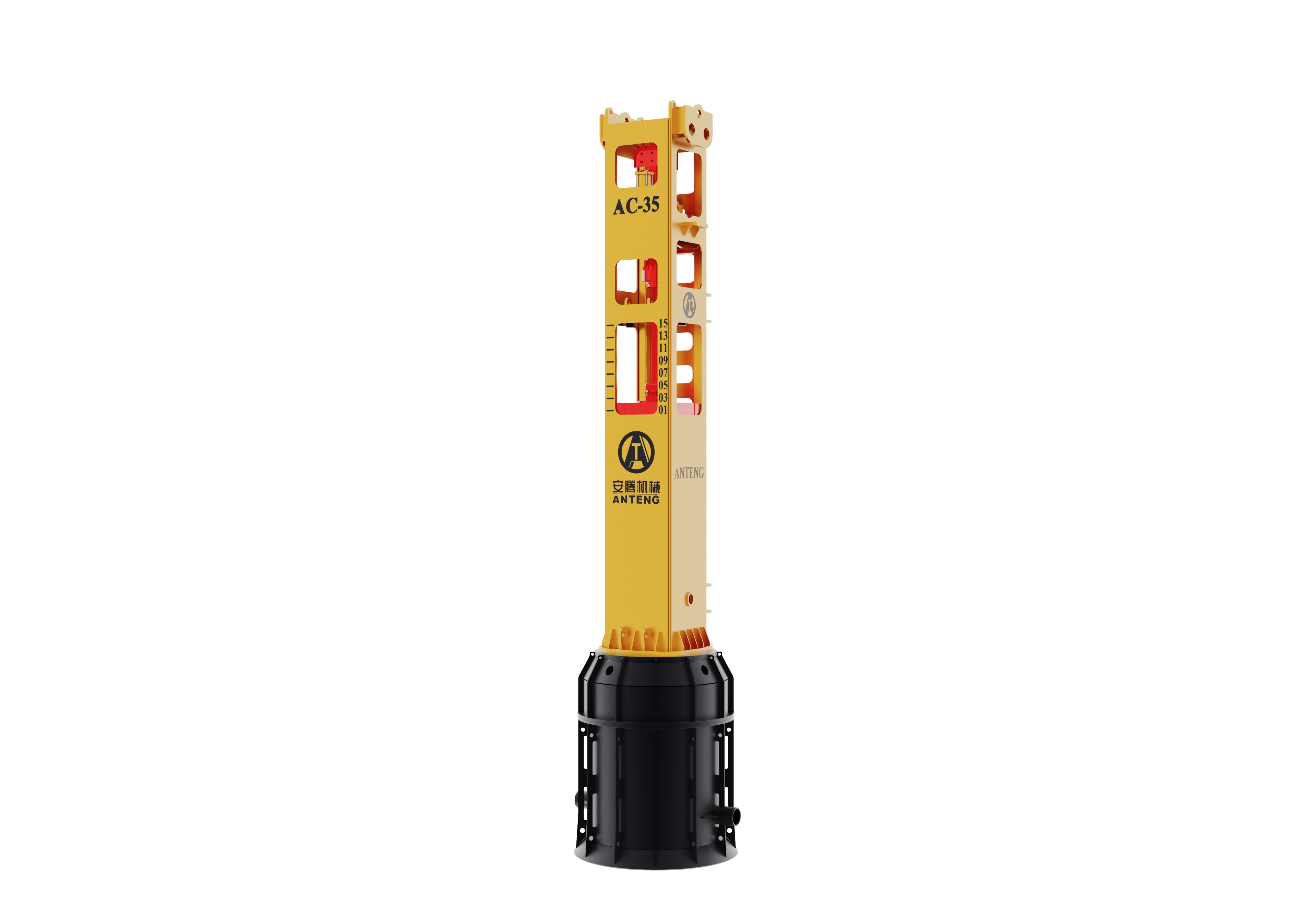

AC-35
| Model | AC-35 | |
| Hydraulic Impact Hammer | (KNm)Impact energy | 525 |
| (bpm)Impact frequency | ||
| Working stroke | 1500 | |
| (bpm)Impact frequency | 25/70 | |
| (Kg)Ram Weight | 35000 | |
| Lifting methord | Single hydraulic cylinder lifting | |
| Size | Length (mm) | 8150 |
| No pile cap | Width (mm) | 1674 |
| W/O Pile cap | Height (mm) | 1860 |
| Weight (kg) | 47000 | |
| Pile cap | LWH (mm) | CUSTOM DESIGN |
| Weight (kg) | ||
- Application
- Introduction
- Features
- Recommended Products
 |
 |
 |
|
Introduction: AC series hydraulic impact hammer is more suitable for driving smallsize piles.It is applied widely in building foundation,bridge construction, municipal projects,photovoltaic projects etc. Our hydraulic impact hammer adopts advanced compact-structure hydraulic system.The stroke of the hammer can be steplessly adjusted in the wide designed range.The hammering rate is also adjustable.Hydraulic impact hammer is convenient for operation.Manual mode and automatic mode are optional.It meets the requirement of most types of piling and foundation works ,can work in complicated geological conditions. |
 |
 |
Double-layer hydraulic cylinder Double-layer hydraulic cylinder and single piston lifting design make the piling hammer in ultra stable performance. |
 |
Accumulator High quality accumulator has strong anti-dirty ability, durable and fast response in working process. |
 |
Ram strike range Operators can easily check the ram working process and control the height of strike accurately through the control box panel. |
 |
Alloy steel forged ram Alloy steel forged ram with good penetrating power and unique conical design effectively reduces wind-resistance during piling process. |
