Manufacturer Hydraulic Excavator Mounted Pile Driver V250 High Frequency Hydraulic Pile Driver
Download catalogue:
- Application
- Recommended Products

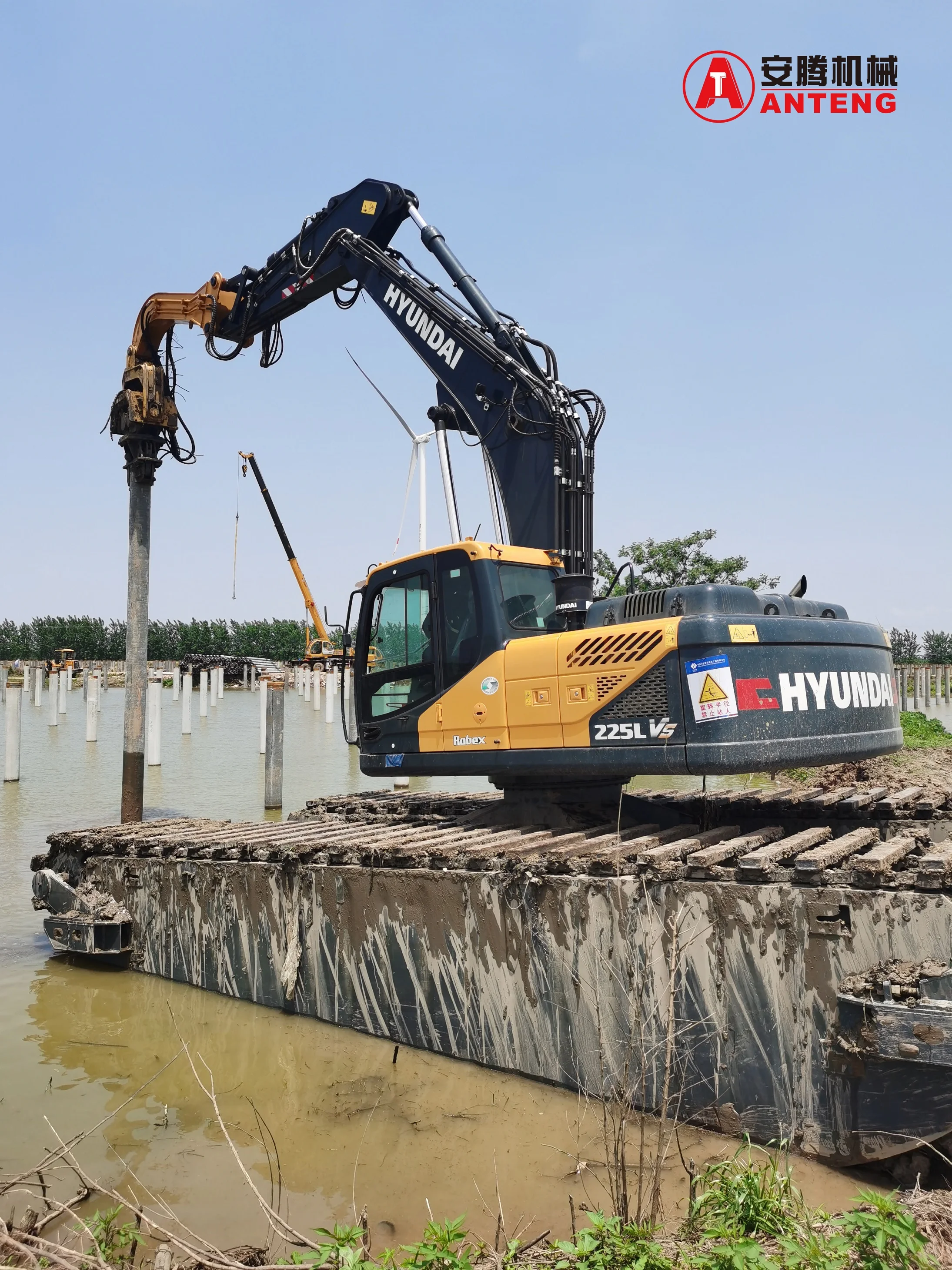

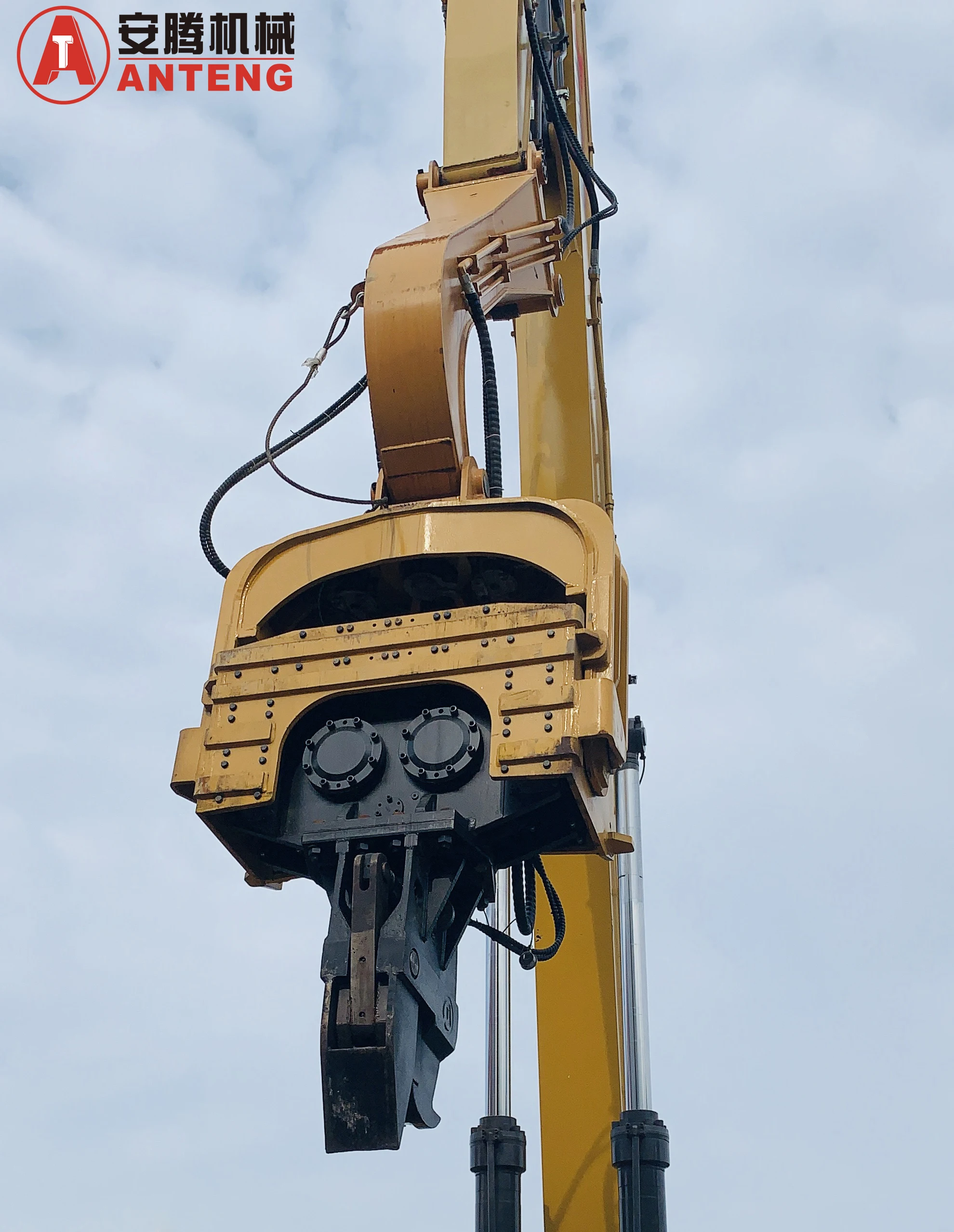

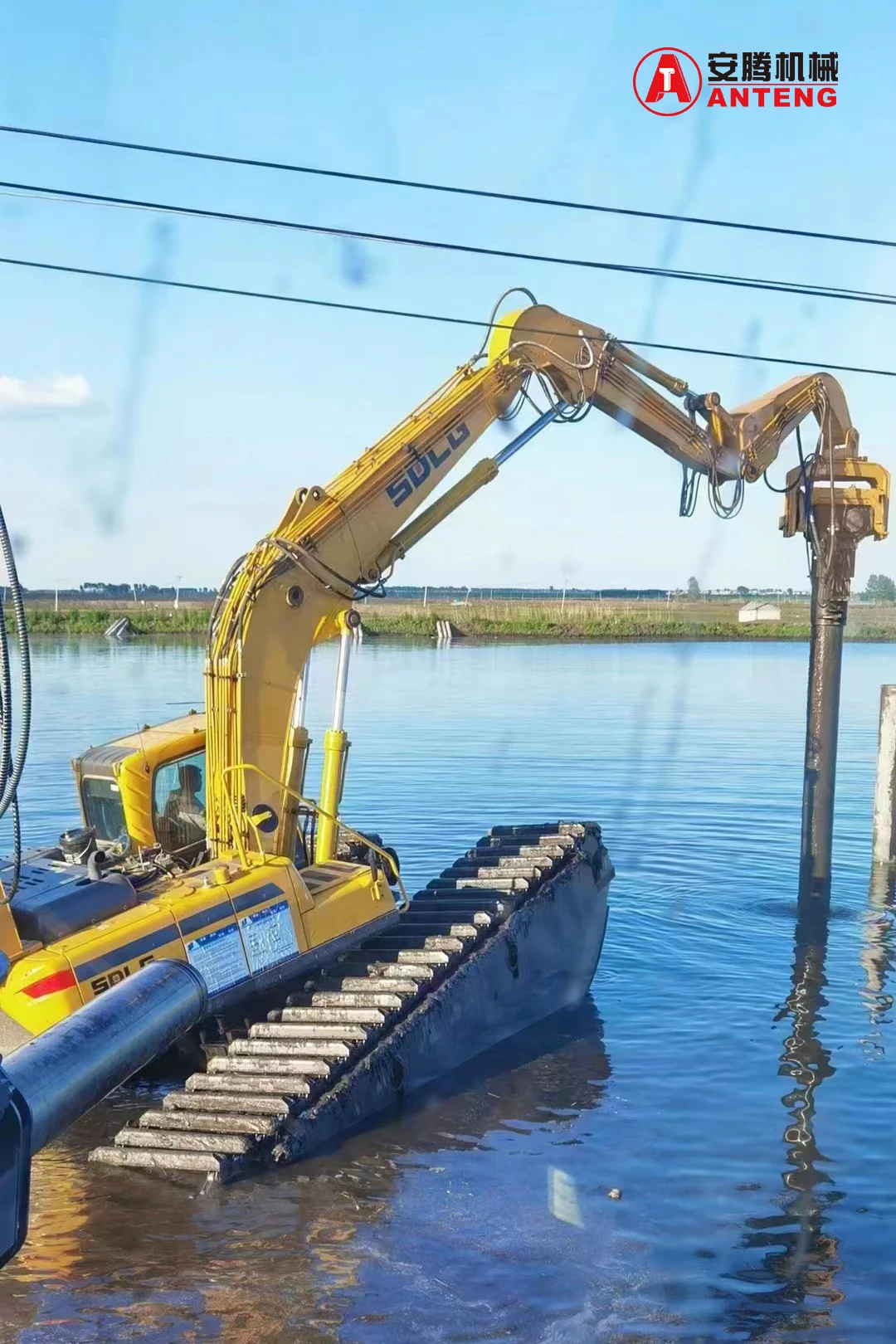

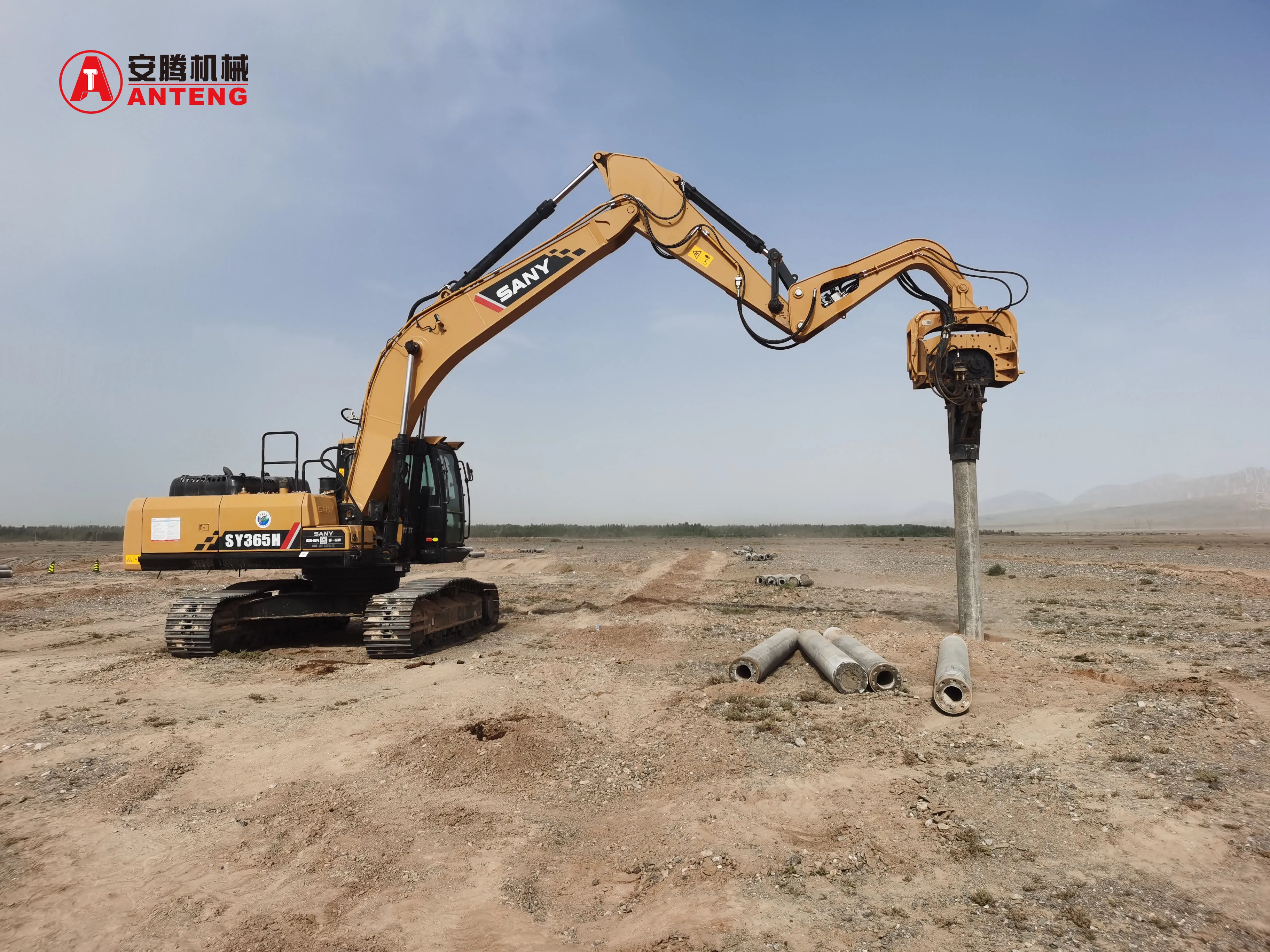

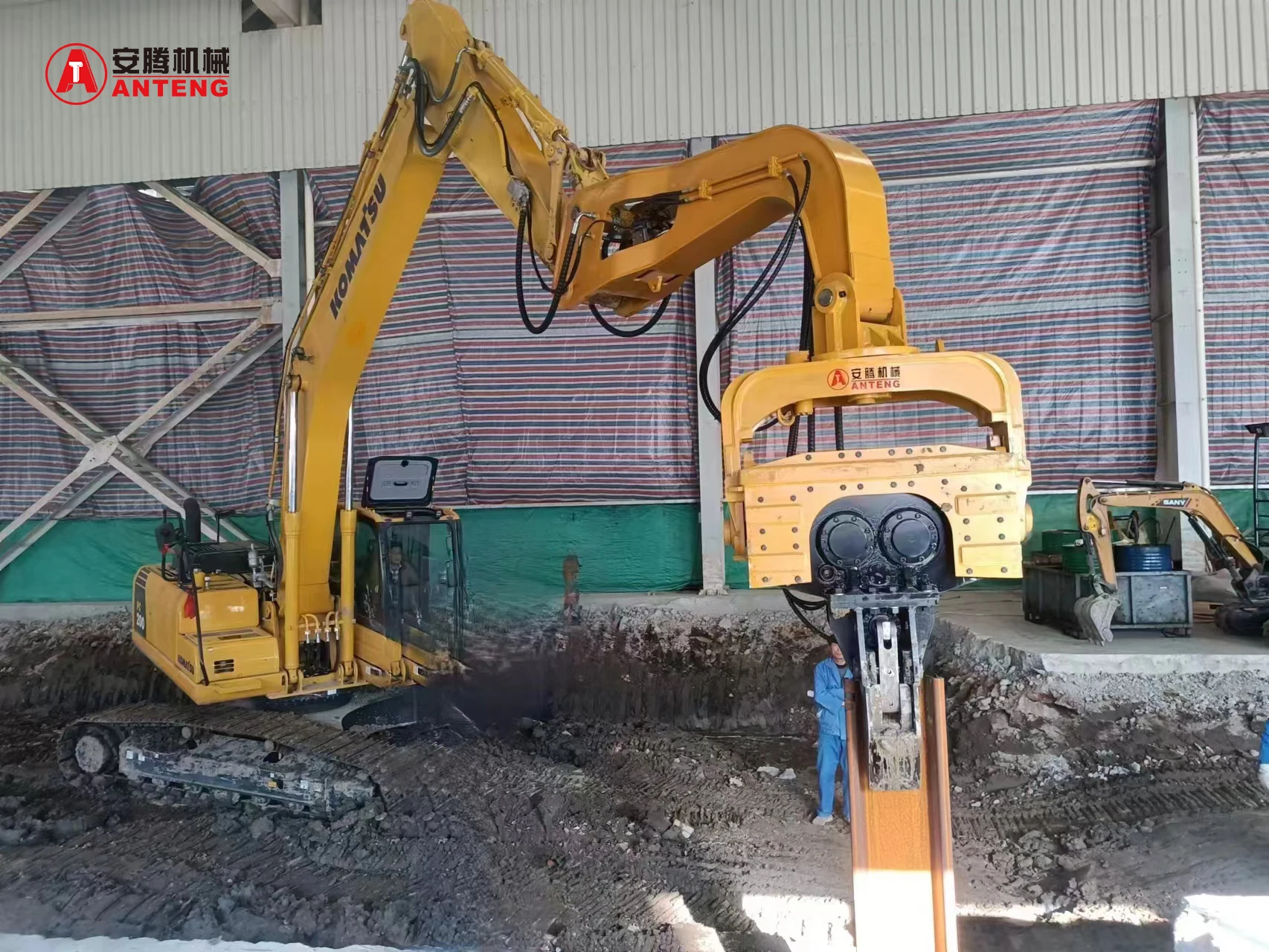

ANTENG pile drivers are excavator-mounted, high frequency, vibratory-type pile drivers - for handling, pitching, driving and extracting different type of piles in a wide range of site and soil conditions. Fitted with clamps capable of driving a wide range of piles including sheet piles, H beam piles, I beam piles, tubular steel piles, square concrete piles and other pile sections.
FEATURES:
1. Available for a wide range of piles including steel sheet piles, Larsen piles, H beam, I beam piles, tube piles, concrete square piles, timber piles etc.
2. High shear load of heavy duty elastomer cushion which prevent the transmission of vibration to excavator.
3. Easy installation and control. Minimal noise which is appropriate various work sites. Best mobility in narrow place compared with crane vibro hammer.
4. Famous brands core components, reliable performance, such as Germany FAG bearing, Parker motor, Japan Yuken valve, US Sun valve element etc.
5. Fully hydraulic flexible control, 360° rotation, 180° tilt, pick up pile easily.
Eccentric Moment |
Kgm |
4.8 |
Max Centrifugal force |
Kn |
380 |
Frequency |
Rpm |
2800 |
Hydraulic System Operation Pressure |
Bar |
280 |
Max Oil Flow |
L/min |
164 |
Weight (Hammer+Clamp) |
Kg |
2100+680 |
Dimension (L*W*H) |
mm |
1300*710*2420 |
Vice Arm Weight |
kg |
710 |
Dimension (L*W*H) |
mm |
2400*600*970 |
Excavator Weight |
Ton |
20-25 |
Application：
ANTENG piling equipment are widely used in deep foundation pits, trenches, pipelines and real estate basements in ports, subway stations, tunnels, bridge cofferdams, bank protections, municipal engineering and civil engineering.
