Auger Drill TD100000
| Model | Unit | TD100000 |
| Applicable Excavator | ton | 45~50 |
| Max speed | rpm | 15 |
| Max Torque range | nm | 1030498 |
| Oil pressure range | bar | 160-350 |
| Oil flow range | l/m | 100-280 |
| Hose/Quick coupling | bsp | 2" |
| Output shaft Std | mm | 150 |
| Head weight | kg | 545 |
| Head weight | mm | 1730 |
| Head diameter | mm | 1050 |
| Auger series | - | Custom designed |
| Auger length | m | |
| Auger dia | mm |
- Application
- Features
- Recommended Products
 |
 |
 |
|

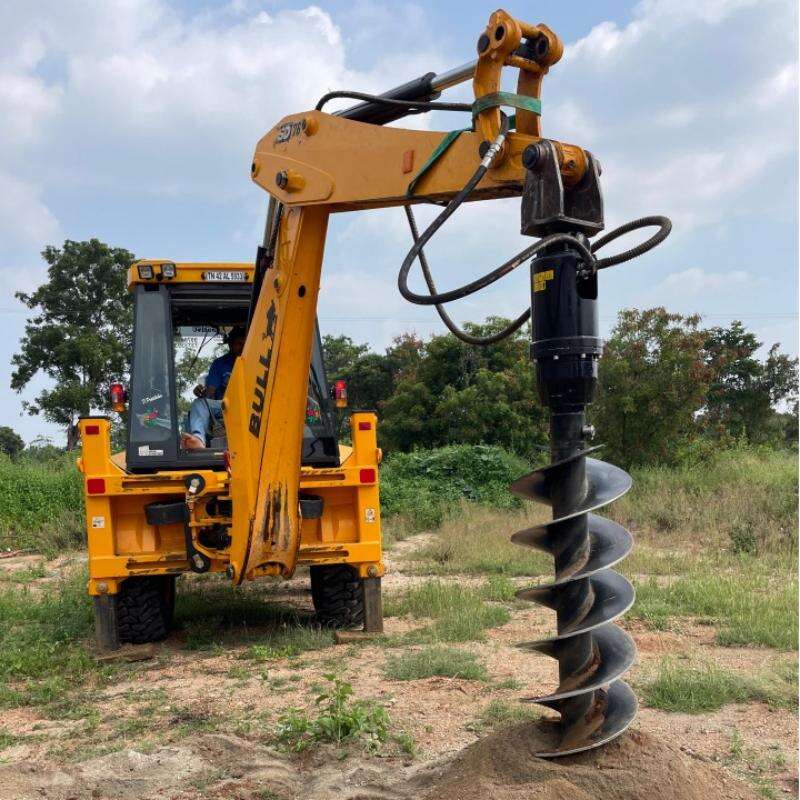

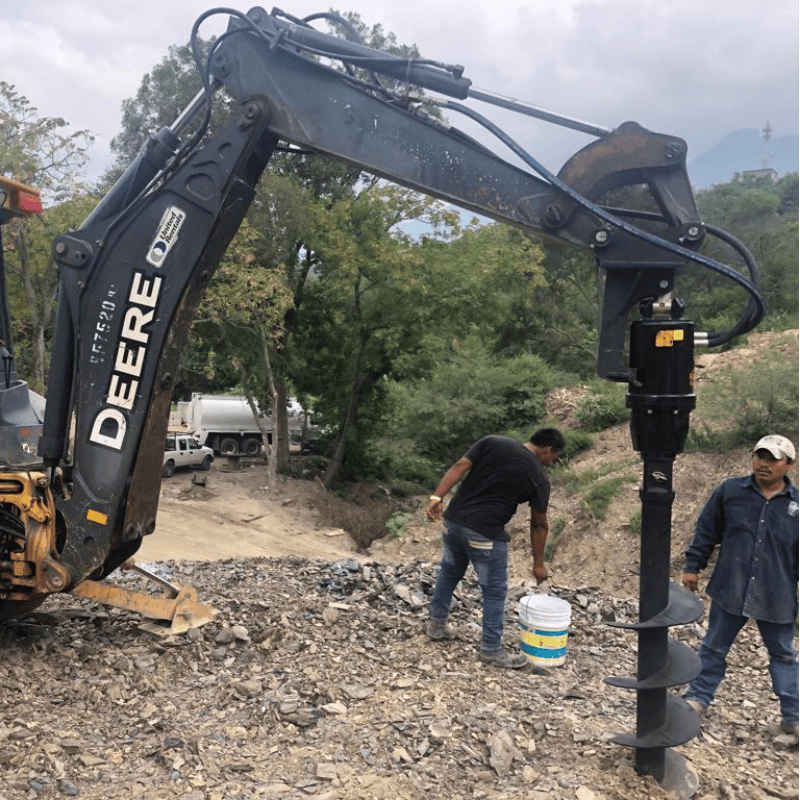

Introduction: The auger attachment is a versatile piece of construction and groundwork machinery. Engineered for efficient post-hole digging and foundation drilling tasks. The auger’s powerful rotational drilling is ideal for landscaping, fencing, and construction projects It delivers precise, fast excavation in various soil conditions, making it a vital asset for on-site groundwork operations. |
 |
Features：
|
• Made from high-level raw materials and precision designed parts. |
|
• Designed to withstand extreme working conditions, it uses high-grade synthetic gear oil for additional protection and long-term use. |
|
• All auger drills are equipped with high-quality hoses and fittings as standard. |
|
• Equipped with high-quality hydraulic motors, providing the reliable accessories on the market. |
