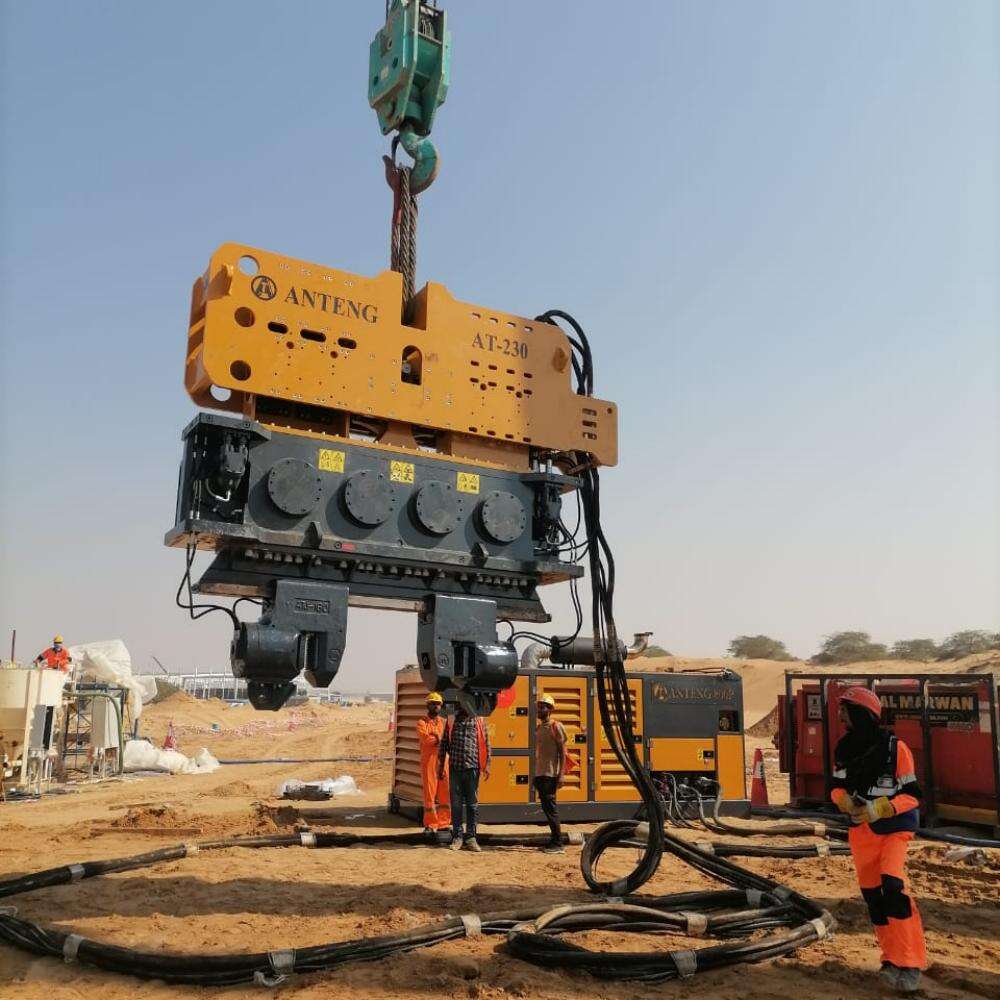

AT-230

Specifications :
Eccentric moment	110 kgm
Max. centrifugal force	2300 KN
Max. frequency	1380 KN
Max. amplitude excl. ATJ300	30 mm
Max. amplitude incl. ATJ300	24 mm
Max. static line-pull	800/1200 KN
Max. operating pressure	350 bar
Max. oil flow	800 l/min
Max. hydraulic power	484/659 kW/HP
Dynamic weight excl. ATJ300	6600 kg
Dynamic weight incl. ATJ300	9100 kg
Total weight excl. ATJ300 & hoses	10500 kg

800P Hydraulic Vibratory Hammer-Normal Frequency

Appurtenance:

Download catalogue:

Application
Introduction
Features
Recommended Products

Introduction:

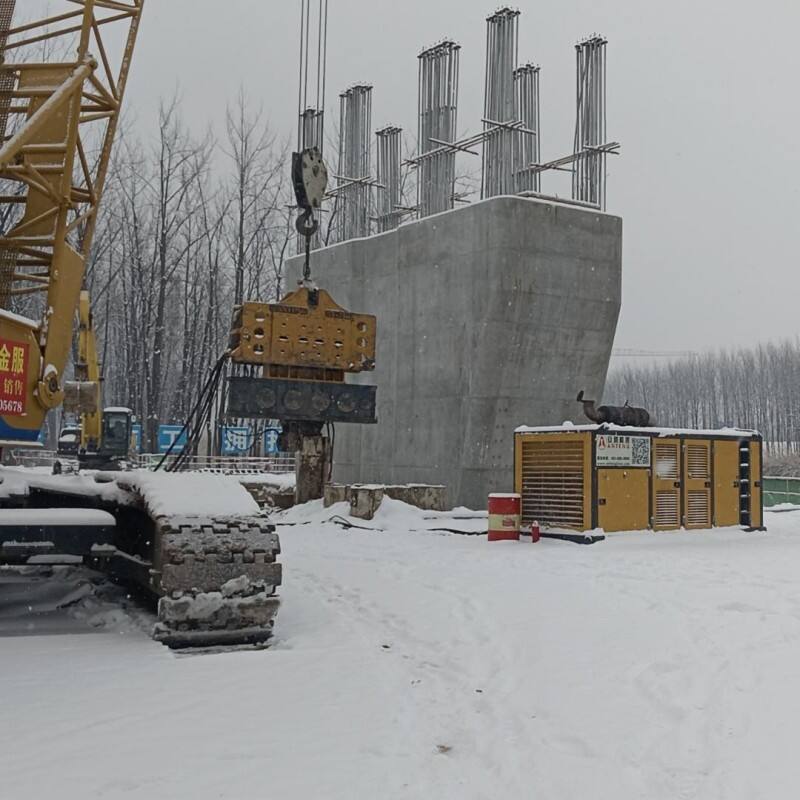

Anteng Hydraulic vibratory hammer is well developed piling equipment widely used in deep foundation pits, trenches, pipelines and real estate basements in ports, subway stations, tunnels, bridge cofferdams, bank protections, municipal engineering and civil engineering, with a very wide application in driving and extracting sheet piles, casing piles, H beam, pre-casted piles, etc.

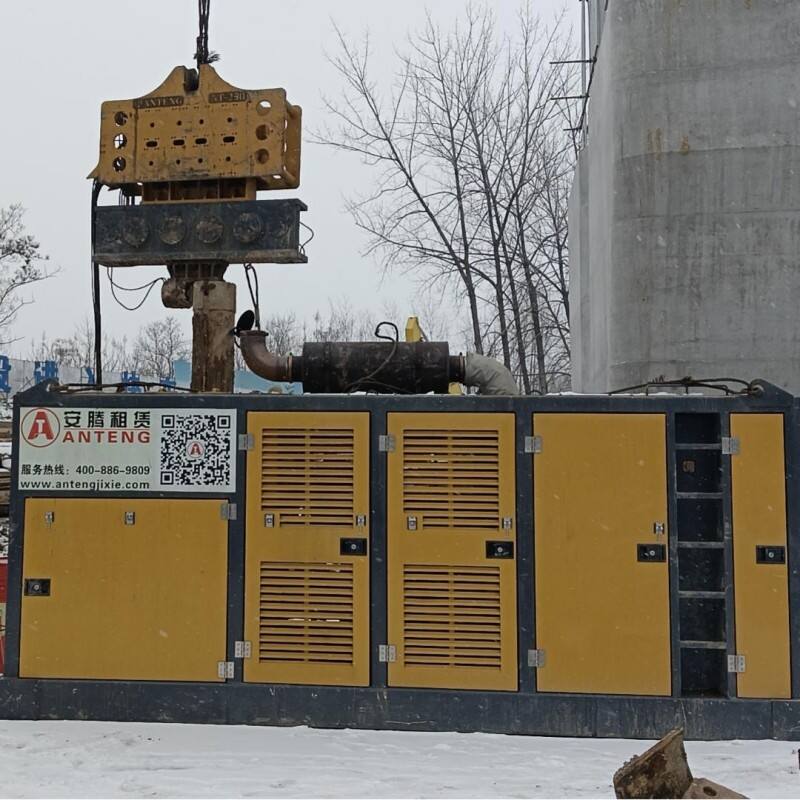

Anteng Hydraulic vibratory hammer range contains 2 main series, normal frequency and resonance free, and totally 19 models, eccentric moments varies from 28kgm to 250kgm, and centrifugal force varies from 1000KN to 5400KN. Other sized vibratory hammers are also available on request. The hammer is equipped with power pack adopting well-known brands of spare parts, such as Cummins and Weichai engine, Parker motors, Rexroth pump, FAG bearing, and so on, for ensuring high quality and stable performance.

	Heavy metal filled eccentric block Our eccentric blocks of hydraulic vibro hammers are filed with“heavy metal, that can produce more eccentric moment and bigger centrifugal force at same frequency. So our vibro hammers drive piles more efficiently.
	German FAG high speed bearing We adopts German FAG bearings, which have longer service life than ordinary bearing.This is key components to keep hammer working time.
	REXROTH hydraulic system Our all hydraulic pumps are from world top brand-Rexroth, which service life and performance stability are much better.
	Forced lubrication cooling system Forced lubrication system make gear parts of vibro hammer more fully lubricated and the temperature increase is steady.
	Build-in Oil circuit Hydraulic oil circuit is built in top cover of housing, eliminating 75% hoses and avoiding damaging while working, thereby reduce failure rate. At same time the structure of vibro hammer is more compact.
	Embedded motor Our hydraulic motors are embedded or with external protective shell, reducing the damage chance of the motors due to collision during the operation, and keep vibro hammers steady.
