AT-65B

AT-65B SPECIFICATION
Eccentric Moment	Kgm	6.5
Centrifugal force	Kn	412
Max. Centrifugal force	Kn	644
Frequency	Rpm	2400-3000
Side clamp force	Kn	912
Bottom clamp force	Kn	650
Hydraulic system operation pressure	bar	350
Rotate/tilt degree	degree	360/+-30
Size	mm	135014902700
Weight	Kg	3500
Applicable excavator class	Ton	32-40

products

Appurtenance:

at 65b efficient side grip vibro hammer for steel pipe pile driver-0

Download catalogue:

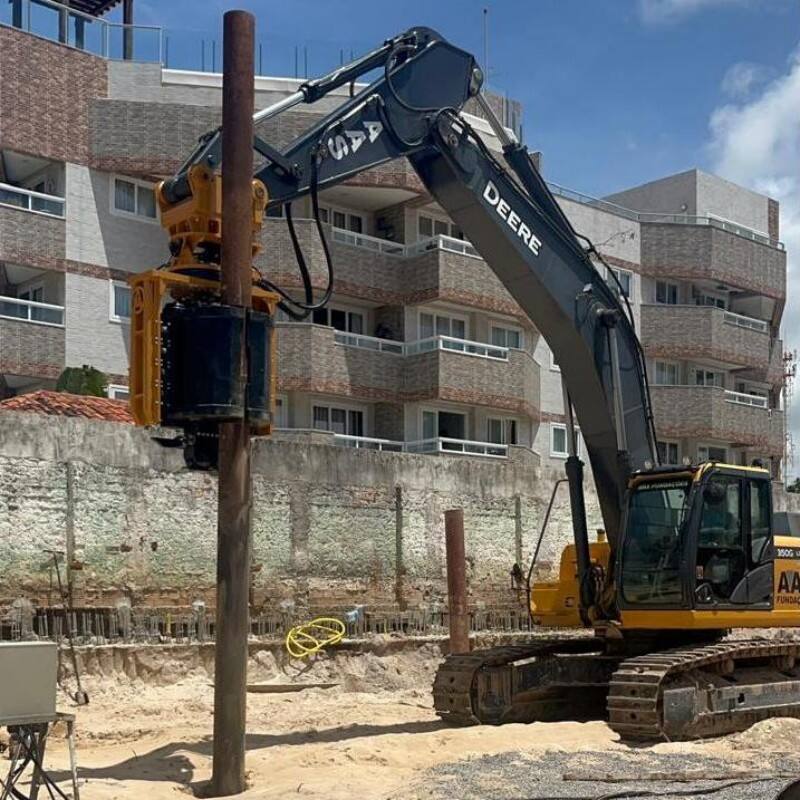

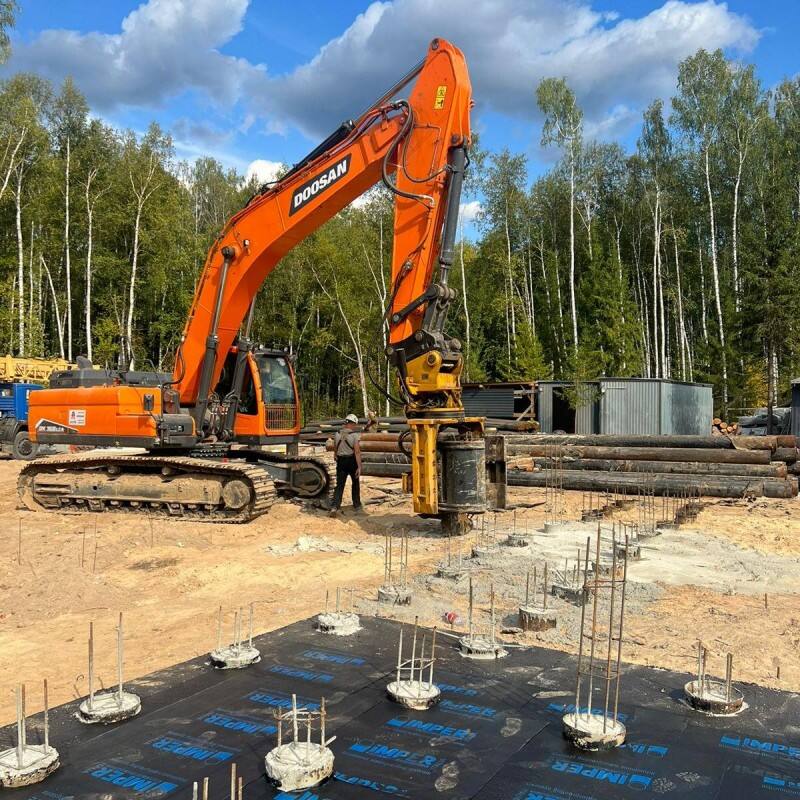

Application
Introduction
Features
Recommended Products

Introduction:

Anteng side grip vibro hammer is developed to meet new market demand. This kind of vibro hammer can grip the pile from both top and side, it eliminates lifting height restraint of excavator boom like top grip model hammer.
Side grip vibro hammer enables small excavator like 15 tons to do more piling job, such as 12m sheet pile driving and extracting. It has perfect efficiency and strong availability in height limited job site condition.
It is safer, easier, and more economical to use side grip vibro hammer, since modification of excavator is no longer needed, additionally transportation of excavator with prolonged boom would be inconvenient and expensive.
Now Anteng side grip vibro hammer has two series, B series with 2 eccentric blocks and C series with 4 eccentric blocks, totally 7 models for excavators weighting from 15 tons to 50 tons, meet the different requirements of various types of customers.

	Qualified eccentric block and traceability Our eccentric blocks of major model hammers have high quality, So our vibratory hammers drive piles more efficiently.And have batch number on it,can trace.
	German FAG high speed bearing We adopts German FAG bearings, which have longer service life than ordinary bearing.This is key components to keep hammer working time.
	Parker hydraulic motor Our all hydraulic motors are from world top brand-Parker, which service life and performance stability are much better.
	International brand control valve Durable, with very low failure rate, it ensures precise control functions and stable working conditions.
	Module side grip clamp Our side grip vibratory hammer have module clamp. It is easy for installing when you replace the suitable clamp for different size pile.
	Forced lubrication cooling system for C series Forced lubrication system make gear parts of vibro hammer more fully lubricated and the temperature increase is steady.
